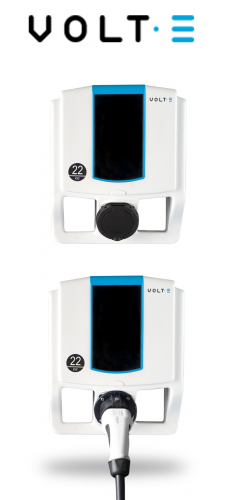

DMTC22KVA - HOME EV CHARGER

The home EV charger series is a solution to daily charge Mode-3 electric vehicles.
The home AC charger series is designed not to be only a compact and cost-effective appliance but also a safe and reliable solution to daily charge your Mode-3electric vehicles.

Main features:

• Charge all Mode-3 vehicle
• Adjustable AC output power
• Socket or fixed cable
• 4.3-inch user-friendly touchscreen
• RFID payment system
• Remote management (OCPP 1.6)
• Built-in communications (3G; LAN; Wi-Fi)



Application:

• Parking lots
• Shopping centers
• Residential community garages
• Private house
• Companies
• Ev dealers
• Service workshops
• Hotels



  Technical specification

  AC NOMINAL INPUT
  Phases / lines	Single/ 3-phase L1, L2, L3 + N + PE
  Voltage	220V / 380 V
  Frequency	50 Hz / 60 Hz
  Input current	32 A
  Input power	7/ 22 kVA
  AC NOMINAL OUTPUT
  Voltage	220V / 380V
  Current	16 / 32A
  Nominal Power	7 / 22kW
  GENERAL SPECIFICATIONS
  Number of sockets/connectors	1 socket or cable
  Socket type	IEC62196 Type-2 (others under request)
  Mounting	wall-mount
  Communication with EV	The pilot signal according to IEC61851
  Human-machine interface
  - Display (optional)	Color touch screen (4.3 inch)
  - RFID system (optional)	ISO/IEC 14443A
  - Light indicators	Three colored indicators
  - Button	Emergency stop button
  - Communication	3G/LAN/Wi-Fi
  - Cooling system	Self-cooled
  - Communication Protocols	OCPP 1.6
  - Place of installation	Indoor/ Outdoor
  - Altitude	Up to 1000m
  ENVIRONMENTAL CONDITIONS
  Storage temperature	-40°C to +70°C
  Operating temperature	-20°C to +50°C
  Humidity	95%RH max
  MECHANICAL DATA
  Enclosure rating	IP55
  Enclosure material	waterproof ABS
  Enclosure door	Frontal door
  Measures (W x D x H)	320*120*400 mm
  Weight	6kg
